14-23 Touring Remote Reservoir Rear Suspension Shocks

Aftermarket 14-23 Touring Remote Reservoir Rear Suspension Shocks by SMA

Features

Placement on Vehicle: Rear

Color: As picture shown

Preload setting on both shocks allows suspension adjustment based on rider, passenger, and equipment weight for optimal performance

No tools required for compression and rebound damping adjustments,Easy to install and calibrate

Buffer rubber ring provide improved plush ride quality, control, and resistance to bottoming-out

High-pressure nitrogen filling design resists heat fading for achieving smooth performance.

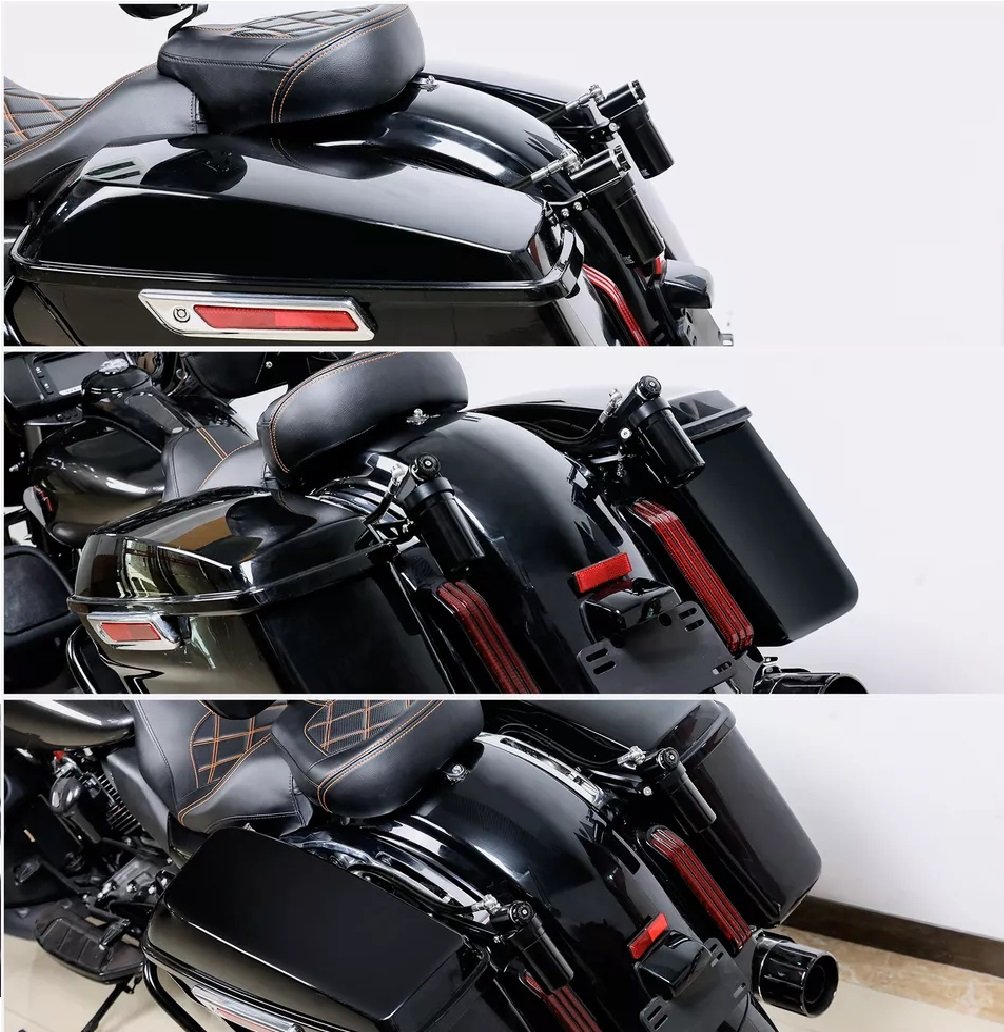

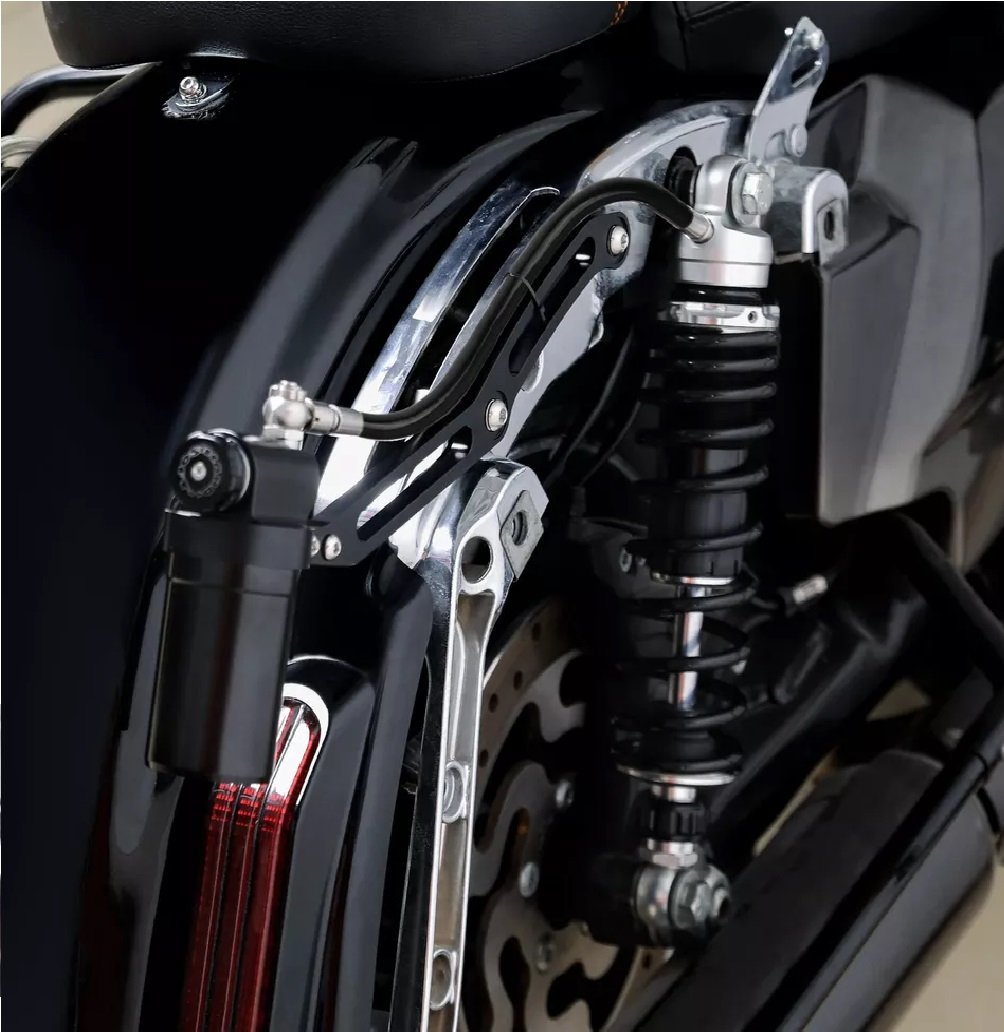

Characteristic style: Exposed remote reservoirs with stainless steel lines

Progressive rate springs stiffen quickly for improved control when you pick up the pace

Billet preload adjustment tool is included for repairable and rebuildable

Reservoir feature a black hard-coat finish with stainless steel lines for performance style.

Damping Setting Reference

First, turn the adjuster counterclockwise until it stops (this is position 0), then count the clicks while turning the adjuster clockwise to the desired setting

Note：This table is a reference for adjustment benchmark,you can make appropriate adjustments according to your weight and driving habits.

Note:When adjusting the preload setting, it is best to keep the motorcycle suspended. Rider and passenger also need to leave the seat. Then follow the instructions in the diagram, loosen the safety screw first, then rotate the adjustment spring, and tighten the safety screw after adjustment.

Fitment

Fits For ’14-later Touring models (except FLHTKL, FLHTCUL, and ’23-later FLHXSE and FLTRXSE).

Package Included

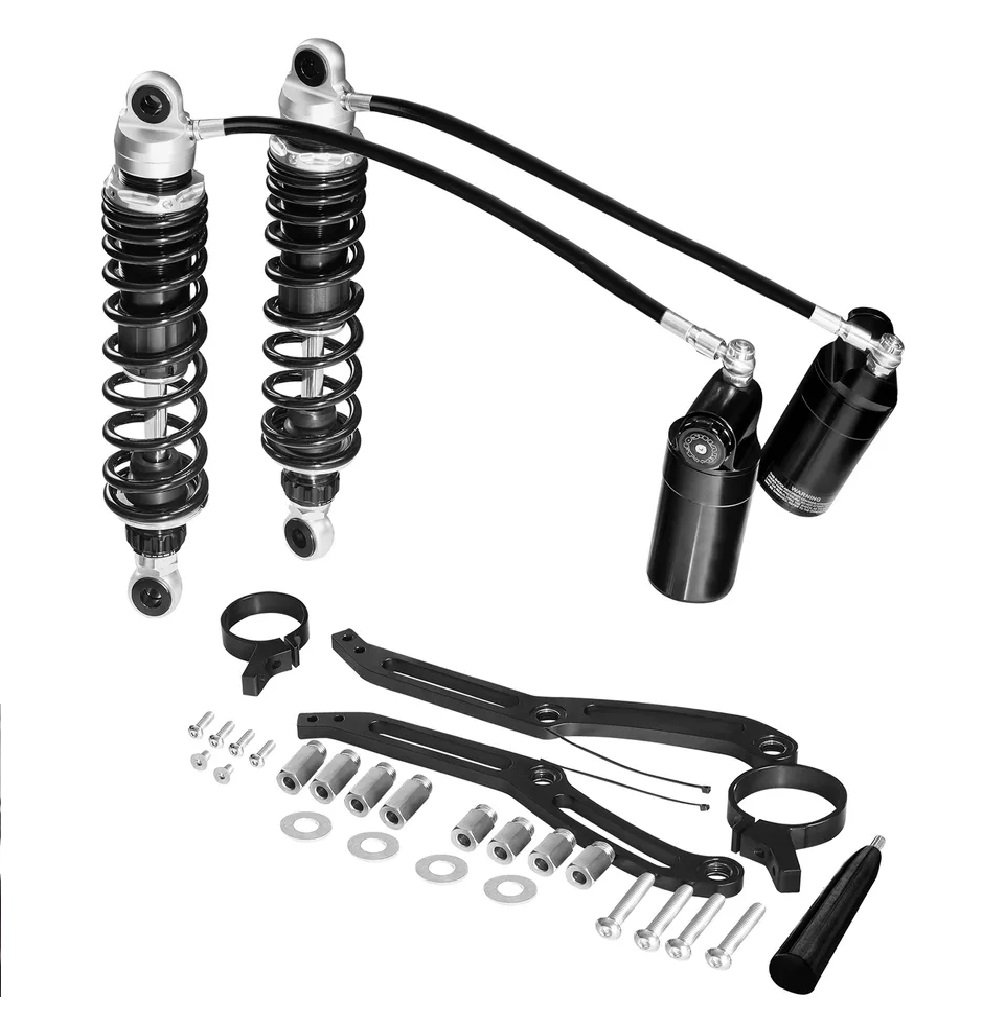

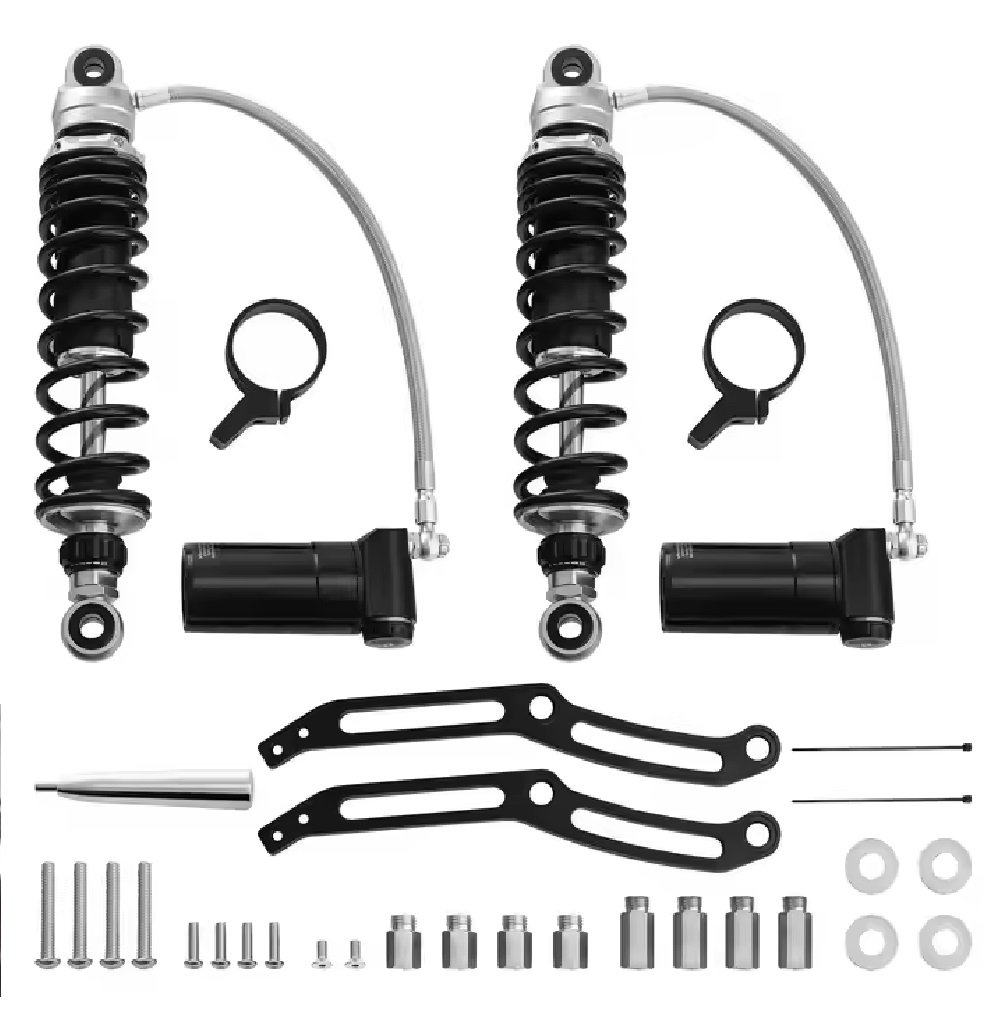

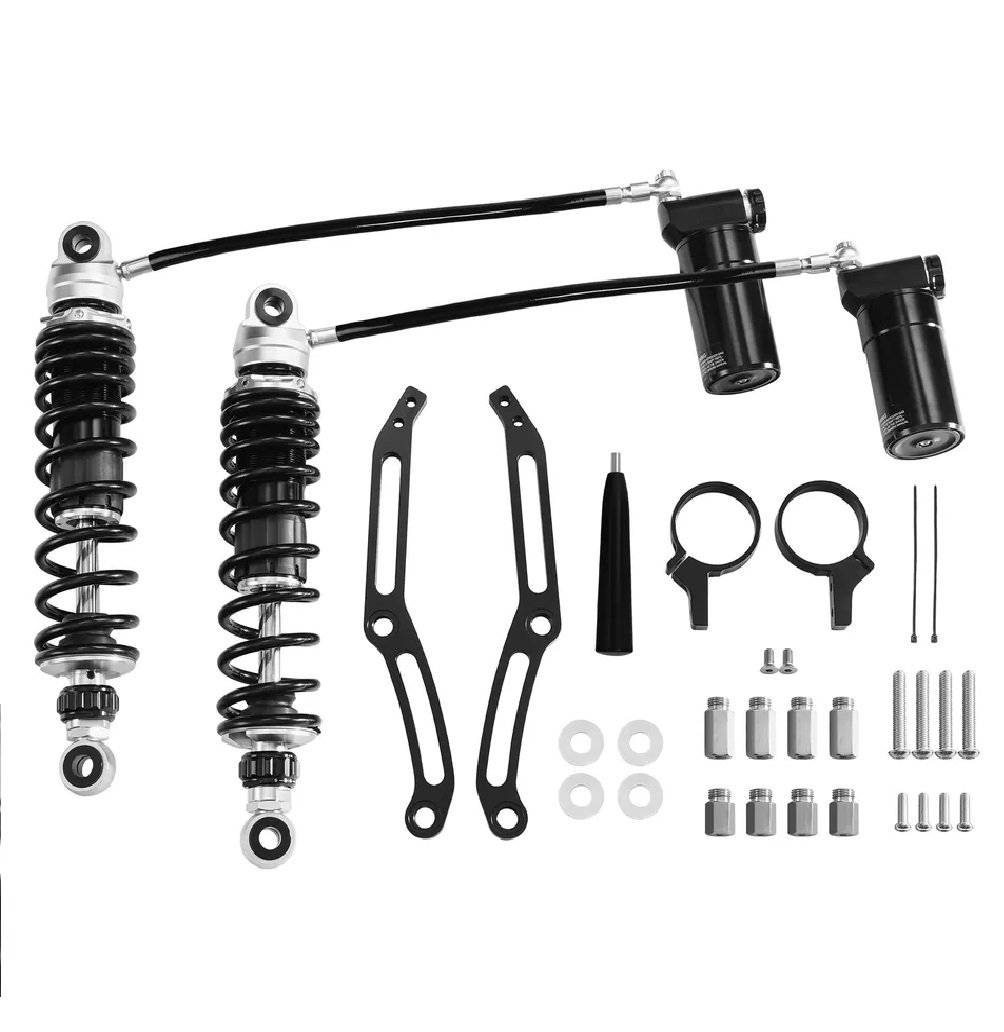

1 Set Rear Shocks (as picture shown)
